38KHZ 45M Remote Receiver Sensor REC TSOP39338 Through Hole Mount

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

38KHZ 45M Remote Receiver Sensor REC TSOP39338 Through Hole Mount

Brand Name : original

Model Number : TSOP39338

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package Product Status : Bulk

Product Status : Active

Sensing Distance : 45m

B.P.F. Center Frequency : 38.0kHz

Voltage - Supply : 2.5 V ~ 5.5 V

Current - Supply : 450 µA

Orientation : Top View

Mounting Type : Through Hole

Contact Now

TSOP39338 Power Switch Ics Sensor Remote Rec 38.0khz 45m Tsop39338-Nd

Remote Receiver Sensor 38.0kHz 45m Through Hole

Specifications of TSOP39338

TYPE DESCRIPTION
Category Sensors, Transducers
Optical Sensors
Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Series -
Package Bulk
Product Status Active
Sensing Distance 45m
B.P.F. Center Frequency 38.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 450 µA
Orientation Top View
Mounting Type Through Hole
Operating Temperature -25°C ~ 85°C
Base Product Number TSOP39338

Features of TSOP39338

• Very low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against ambient light
• Two lenses for high sensitivity
• Insensitive to supply voltage ripple and noise
• Ultra small top-view PCB footprint
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

Applications of TSOP39338

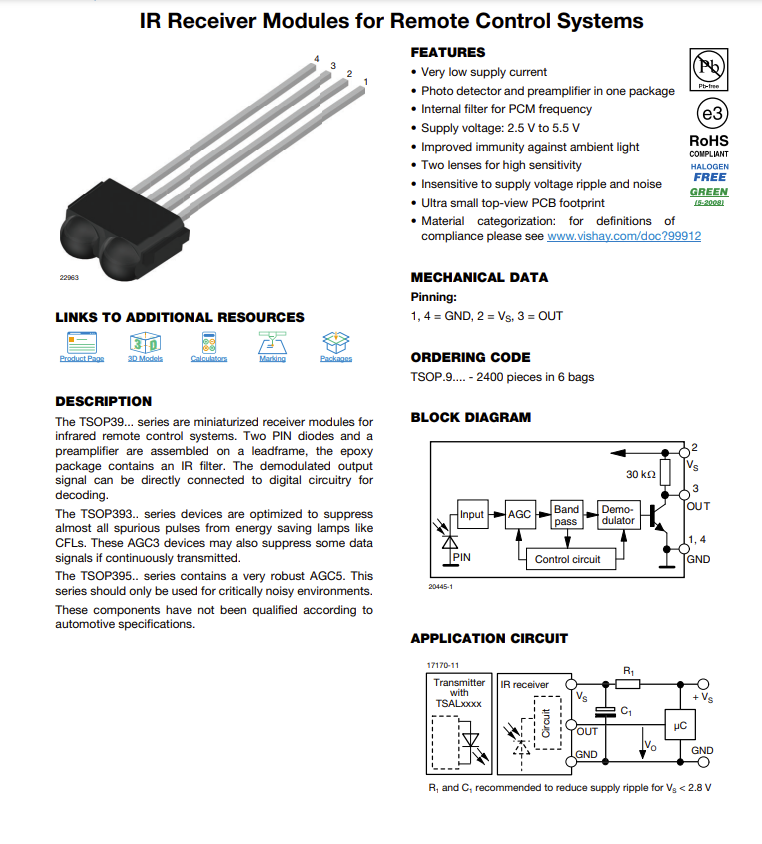

The TSOP39... series are miniaturized receiver modules for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a leadframe, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to digital circuitry for decoding.

Environmental & Export Classifications of TSOP39338

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500

38KHZ 45M Remote Receiver Sensor REC TSOP39338 Through Hole Mount


Product Tags:

TSOP39338



45M Remote Receiver Sensor



38KHZ Remote Receiver Sensor


Wholesale 38KHZ 45M Remote Receiver Sensor REC TSOP39338 Through Hole Mount from china suppliers

38KHZ 45M Remote Receiver Sensor REC TSOP39338 Through Hole Mount Images
