VN5E160ASTR-E Power Switch/Driver 1:1 N-Channel 7A 8-SOIC 4.5V ~ 28V

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

VN5E160ASTR-E Power Switch/Driver 1:1 N-Channel 7A 8-SOIC 4.5V ~ 28V

Brand Name : original

Model Number : VN5E160ASTR-E

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Ratio - Input:Output : 1:1

Voltage - Load : 4.5V ~ 28V

Output Type : N-Channel

Number of Outputs : 1

Interface : On/Off

Output Configuration : High Side

Voltage - Supply (Vcc/Vdd) : Not Required

Current - Output (Max) : 7A

Contact Now

VN5E160ASTR-E Power Switch/Driver 1:1 N-Channel 7A 8-SOIC 4.5V ~ 28V

IC PWR SWITCH N-CHANNEL 1:1 8SO

Specifications of VN5E160ASTR-E

YPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
Mfr STMicroelectronics
Series VIPower
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Ratio - Input:Output 1:1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4.5V ~ 28V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 7A
Rds On (Typ) 160mOhm (Max)
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-SOIC
Package / Case 8-SOIC (0.154", 3.90mm Width)
Base Product Number VN5E160

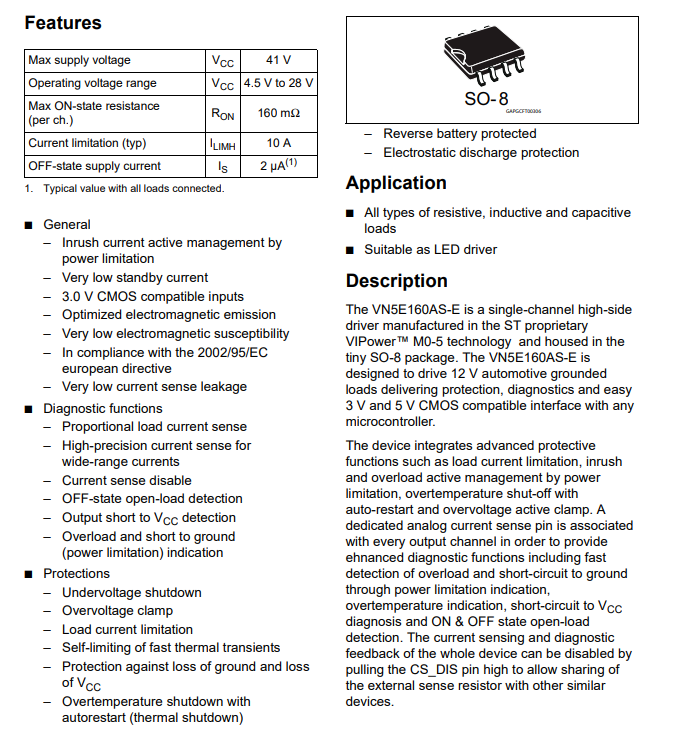

Features of VN5E160ASTR-E

■ General
– Inrush current active management by
power limitation
– Very low standby current
– 3.0 V CMOS compatible inputs
– Optimized electromagnetic emission
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
– Very low current sense leakage
■ Diagnostic functions
– Proportional load current sense
– High-precision current sense for wide-range currents
– Current sense disable
– OFF-state open-load detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
■ Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self-limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Overtemperature shutdown with autorestart (thermal shutdown)

Applications of VN5E160ASTR-E

■ All types of resistive, inductive and capacitive loads
■ Suitable as LED driver

Environmental & Export Classifications of VN5E160ASTR-E

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
