LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6

Brand Name : original

Model Number : LM66100DCKR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Delay Time - ON : 27 µs

Delay Time - OFF : 2 µs

Current - Output (Max) : 1.5A

Voltage - Supply : 1.5V ~ 5.5V

Operating Temperature : -40°C ~ 105°C

Contact Now

LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6


OR Controller P-Channel 1:1 SC-70-6

Specifications of LM66100DCKR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
OR Controllers, Ideal Diodes
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Type -
FET Type P-Channel
Ratio - Input:Output 1:01
Internal Switch(s) Yes
Delay Time - ON 27 µs
Delay Time - OFF 2 µs
Current - Output (Max) 1.5A
Voltage - Supply 1.5V ~ 5.5V
Applications General Purpose
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Base Product Number LM66100


Features of LM66100DCKR


• Wide operating voltage range: 1.5 V – 5.5 V
• Reverse voltage standoff on VIN:
–6-V absolute maximum
• Maximum continuous current (IMAX): 1.5 A
• On-Resistance (RON):
– 5-V VIN = 79-mΩ (typical)
– 3.6-V VIN = 91-mΩ (typical)
– 1.8-V VIN = 141-mΩ (typical)
• Comparator chip enable (CE)
• Channel status indication (ST)
• Low current consumption:
– 3.6-V VIN Shutdown current (ISD,VIN): 120-nA (typical)
– 3.6-V VIN Quiescent current (IQ, VIN): 150-nA (typical)

Applications of LM66100DCKR


• Smart meters
• Building automation
• GPS and tracking
• Primary and backup batteries


Environmental & Export Classifications of LM66100DCKR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6


Wholesale LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6 from china suppliers

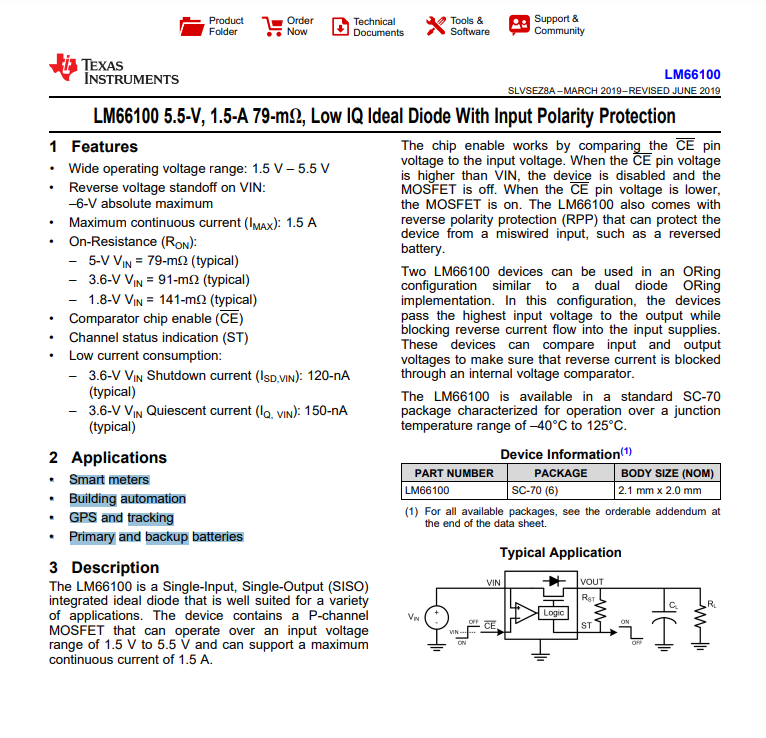

LM66100DCKR OR Controller IC P-Channel 1:1 IDEAL DIODE SC70-6 Images
