AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP

Brand Name : original

Model Number : AD5644RBRMZ-5REEL7

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Digi-Key Programmable : Not Verified

Number of Bits : 14

Number of D/A Converters : 4

Settling Time : 5µs

Output Type : Voltage - Buffered

Differential Output : No

Data Interface : SPI, DSP

Contact Now

AD5644RBRMZ-5REEL7 Integrated Circuits IC Chip Ic Dac 14bit V-Out 10msop

AD5644RBRMZ-5REEL7 Integrated Circuits IC Dac 14bit V-Out 10msop

14 Bit Digital to Analog Converter 4 10-MSOP

Specifications of AD5644RBRMZ-5REEL7

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
Mfr Analog Devices Inc.
Series nanoDAC®
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Digi-Key Programmable Not Verified
Number of Bits 14
Number of D/A Converters 4
Settling Time 5µs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type External, Internal
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
INL/DNL (LSB) ±2, ±0.5 (Max)
Architecture String DAC
Operating Temperature -40°C ~ 105°C
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-MSOP
Mounting Type Surface Mount
Base Product Number AD5644

Features of AD5644RBRMZ-5REEL7

• Low power, smallest pin-compatible, quad nanoDACs
- AD5664R: 16 bits
- AD5644R: 14 bits
- AD5624R: 12 bits
• User-selectable external or internal reference
- External reference default
- On-chip 1.25 V/2.5 V, 5 ppm/°C reference
• 10-lead MSOP; 10-lead, 3 mm × 3 mm LFCSP_WD; and
- 12-ball, 1.665 mm × 2.245 mm WLCSP
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale
• Per channel power-down
• Serial interface, up to 50 MHz

Applications of AD5644RBRMZ-5REEL7

•​ Process controls
•​ Data acquisition systems
•​ Portable battery-powered instruments
•​ Digital gain and offset adjustment
•​ Programmable voltage and current sources
•​ Programmable attenuators

Environmental & Export Classifications of AD5644RBRMZ-5REEL7

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP




Product Tags:

AD5644RBRMZ-5REEL7



10MSOP ADE Chip



Dac 14bit V-Out 10MSOP


Wholesale AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP from china suppliers

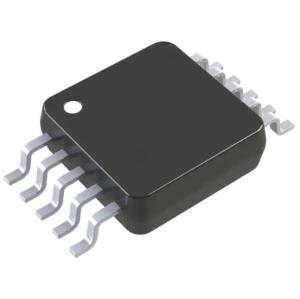

AD5644RBRMZ-5REEL7 ADE Chip IC Dac 14bit V-Out 10MSOP Images
