SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop

Brand Name : original

Model Number : SN74LV14APWR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Inputs : 1

Features : Schmitt Trigger

Voltage - Supply : 2V ~ 5.5V

Current - Quiescent (Max) : 20 µA

Current - Output High, Low : 12mA, 12mA

Input Logic Level - Low : 0.75V ~ 1.5V

Input Logic Level - High : 1.75V ~ 3.5V

Max Propagation Delay @ V, Max CL : 10.6ns @ 5V, 50pF

Contact Now

SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP

Specifications of SN74LV14APWR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Gates and Inverters
Mfr Texas Instruments
Series 74LV
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 20 µA
Current - Output High, Low 12mA, 12mA
Input Logic Level - Low 0.75V ~ 1.5V
Input Logic Level - High 1.75V ~ 3.5V
Max Propagation Delay @ V, Max CL 10.6ns @ 5V, 50pF
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74LV14

Features of SN74LV14APWR

• VCC operation of 2 V to 5.5 V
• Max tpd of 10 ns at 5 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17

Applications of SN74LV14APWR

• Network Switches
• Wearable Health and Fitness Devices
• PDAs
• LCD TVs
• Power Infrastructure

Environmental & Export Classifications of SN74LV14APWR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop


Wholesale SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop from china suppliers

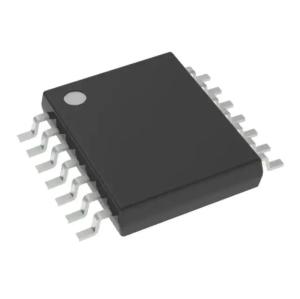

SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop Images
