TLVH431AIDBZR IC VREF SHUNT ADJ 1% SOT23-3 Power Management 70 mA
Shunt Voltage Reference IC Adjustable 1.24V 18 VV ±1% 70 mA SOT-23-3
Specifications of TLVH431AIDBZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) |
| Voltage Reference |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 18 V |
| Current - Output | 70 mA |
| Tolerance |
±1% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 100 µA |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TLVH431 |
Features of TLVH431AIDBZR

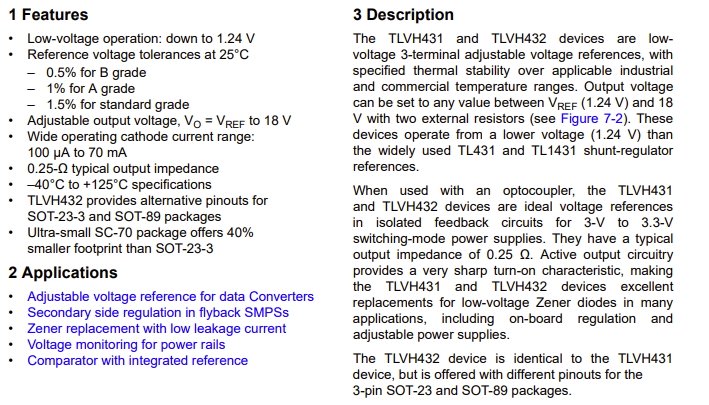

• Low-voltage operation: down to 1.24 V
• Reference voltage tolerances at 25°C
– 0.5% for B grade
– 1% for A grade
– 1.5% for standard grade
• Adjustable output voltage, VO = VREF to 18 V
• Wide operating cathode current range: 100 μA to 70 mA
• 0.25-Ω typical output impedance
• –40°C to +125°C specifications
• TLVH432 provides alternative pinouts for SOT-23-3 and SOT-89 packages
• Ultra-small SC-70 package offers 40% smaller footprint than SOT-23-3
Applications of TLVH431AIDBZR
• Adjustable voltage reference for data Converters
• Secondary side regulation in flyback SMPSs
• Zener replacement with low leakage current
• Voltage monitoring for power rails
• Comparator with integrated reference
Environmental & Export Classifications of TLVH431AIDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
1 Features
1• Fixed Output Voltages of 2.048 V, 2.5 V, 3 V,
4.096 V, 5 V, 8.192 V, and 10 V
• Tight Output Tolerances and Low Temperature
Coefficient
– Max 0.1%, 100 ppm/°C – A Grade
– Max 0.2%, 100 ppm/°C – B Grade
– Max 0.5%, 100 ppm/°C – C Grade
– Max 1.0%, 150 ppm/°C – D Grade
• Low Output Noise: 35 μVRMS Typ
• Wide Operating Current Range: 45 μA Typ to 15
mA
• Stable With All Capacitive Loads; No Output
Capacitor Required
• Available in Extended Temperature Range: –40°C
to 125°C
Product Tags:
|
|
SOT23-3 70mA Shunt Voltage Reference IC TLVH431AIDBZR Power Management Images
|
