DS64MB201SQ Networking Telecommunications Switch IC 3 Channel 54-WQFN (10x5.5)

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

DS64MB201SQ Networking Telecommunications Switch IC 3 Channel 54-WQFN (10x5.5)

Brand Name : original

Model Number : DS64MB201SQ

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Applications : Networking, Telecommunications

Multiplexer/Demultiplexer Circuit : 2:1, 1:2

Switch Circuit : -

Number of Channels : 3

Voltage - Supply, Single (V+) : 2.38V ~ 2.63V

Features : Equalization, RXAUI, SATA, XAUI

Operating Temperature : -40°C ~ 85°C (TA)

Package / Case : 54-WFQFN Exposed Pad

Contact Now

DS64MB201SQ Networking Telecommunications Switch IC 3 Channel 54-WQFN (10x5.5)

Specifications of DS64MB201SQ

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Interface
Analog Switches - Special Purpose
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Applications Networking, Telecommunications
Multiplexer/Demultiplexer Circuit 2:1, 1:2
Switch Circuit -
Number of Channels 3
On-State Resistance (Max) -
Voltage - Supply, Single (V+) 2.38V ~ 2.63V
Voltage - Supply, Dual (V±) -
-3db Bandwidth -
Features Equalization, RXAUI, SATA, XAUI
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 54-WFQFN Exposed Pad
Supplier Device Package 54-WQFN (10x5.5)
Base Product Number DS64MB201

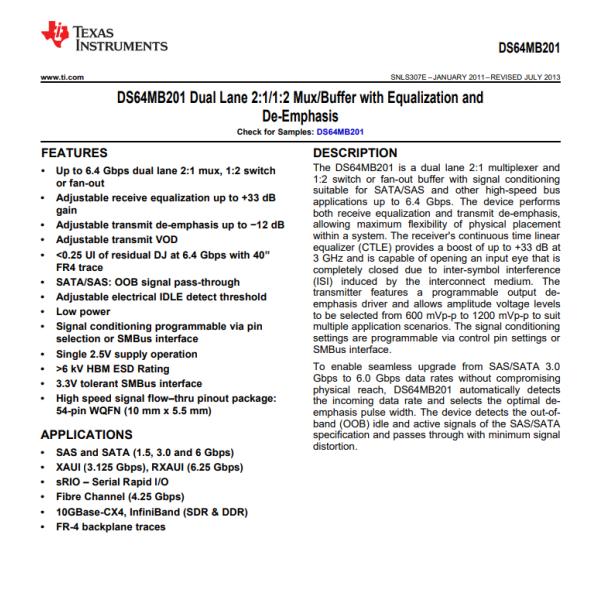

Features of DS64MB201SQ


* Up to 6.4 Gbps dual lane 2:1 mux, 1:2 switchor fan-out
* Adjustable receive equalization up to +33 dBgain
* Adjustable transmit de-emphasis up to -12 dB
* Adjustable transmit VOD
* <0.25 Ul of residual DJ at 6.4 Gbps with 40FR4 trace
* SATA/SAS: OOB signal pass-through
* Adjustable electrical IDLE detect threshold
* Low power
* Signal conditioning programmable via pinselection or SMBus interface
* Single 2.5V supply operation
* >6 kV HBM ESD Rating
* 3.3V tolerant SMBus interface
* High speed signal flow-thru pinout package:54-pin WQFN (10 mm x 5.5 mm)

Applications of DS64MB201SQ


• SAS and SATA (1.5, 3.0 and 6 Gbps)
• XAUI (3.125 Gbps), RXAUI (6.25 Gbps)
• sRIO – Serial Rapid I/O
• Fibre Channel (4.25 Gbps)
• 10GBase-CX4, InfiniBand (SDR & DDR)
• FR-4 backplane traces

Environmental & Export Classifications of DS64MB201SQ

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
