CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ)

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ)

Brand Name : original

Model Number : CSD17576Q5B

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Drain to Source Voltage (Vdss) : 30 V

Current - Continuous Drain (Id) @ 25°C : 100A (Ta)

Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V

Rds On (Max) @ Id, Vgs : 2mOhm @ 25A, 10V

Vgs(th) (Max) @ Id : 1.8V @ 250µA

Gate Charge (Qg) (Max) @ Vgs : 68 nC @ 10 V

Vgs (Max) : ±20V

Power Dissipation (Max) : 3.1W (Ta), 125W (Tc)

Contact Now

CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta), 125W (Tc) -55°C ~ 150°C (TJ)

Specifications of CSD17576Q5B

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr Texas Instruments
Series NexFET™
Package Tape & Reel (TR)
Cut Tape (CT)
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 100A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 2mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 68 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4430 pF @ 15 V
FET Feature -
Power Dissipation (Max) 3.1W (Ta), 125W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-VSONP (5x6)
Package / Case 8-PowerTDFN
Base Product Number CSD17576Q5


Features of CSD17576Q5B


• Low Qg and Qgd
• Low RDS(on)
• Low Thermal Resistance
• Avalanche Rated
• Pb Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 5-mm × 6-mm Plastic Package



Introduction of CSD17576Q5B


• Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
• Optimized for Synchronous FET Applications

CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ)







































Product Tags:

CSD17576Q5B N-Channel IC Chips



100A CSD17576Q5B N-Channel IC Chips



3.1W CSD17576Q5B N-Channel IC Chips


Wholesale CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ) from china suppliers

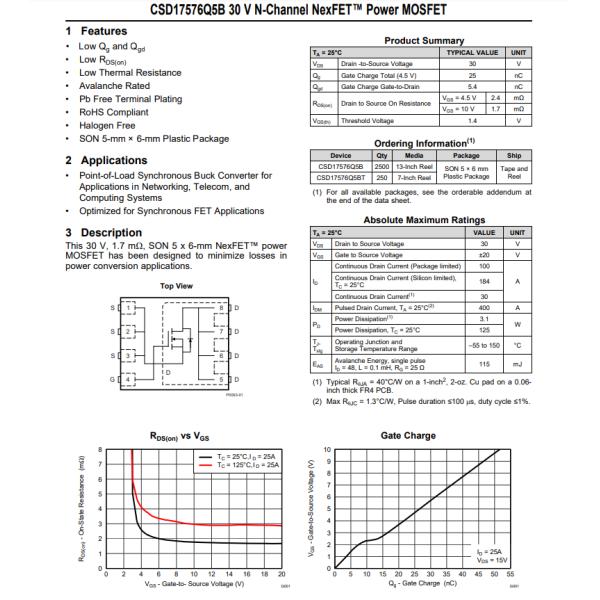

CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ) Images
